User guide

WebUSB

If you have a modern web browser you can send your programs straight to the micro:bit from the MakeCode and Python editors without having to download, drag and drop HEX files.

Direct flashing saves time and makes it simpler to update the code on your micro:bit each time you update the code in your editor.

It uses a process called WebUSB, which makes a connection between the browser or app and the micro:bit via the USB cable.

What you need

  • A Windows 8+, Mac, Chromebook or Linux computer.
  • A Chrome-based browser like the new Microsoft Edge or Google Chrome version 65 or above.
  • micro:bit firmware 0243 or above - see our firmware guide if you're not sure what firmware your micro:bit has and learn how to update it if necessary.

MakeCode

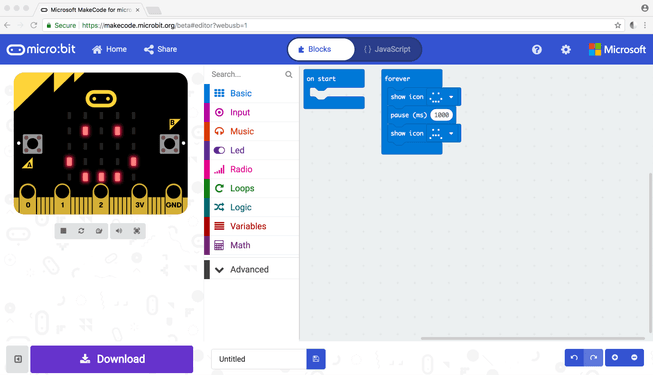

screen recording: how to connect micro:bit to MakeCode editor using webUSB
  1. Select the more options (three dots) menu next to the Download button and then choose Pair Device.
  2. A browser pop-up will let you select your BBC micro:bit and then click Connect. You will see the USB symbol flashing on the Download button to indicate a successful connection.
  3. Select Download to instantly flash your program to the micro:bit. The first time you do this it may take a bit longer, but subsequent flashes will be faster.

Don’t see a device listed? Check our WebUSB troubleshooting guide for help.

Python

Screen recording showing how to connect micro:bit Python editor using webUSB
  1. From the Python editor menu choose Connect. You will see a pop-up in the browser that lists any micro:bits you have connected with a USB cable.
  2. Select the device named BBC micro:bit CMSIS-DAP and then Connect. You will see the menu update to show you a connection has been made. Flash and Disconnect appear as buttons in the menu
  3. Try flashing your program, you should find that it is now flashed directly to the micro:bit each time you press Flash. The first time you do this it may take a bit longer, but subsequent flashes will be faster.

Don’t see a device listed? Check our WebUSB troubleshooting guide for help.
